Sospensione
IP20
PRF042

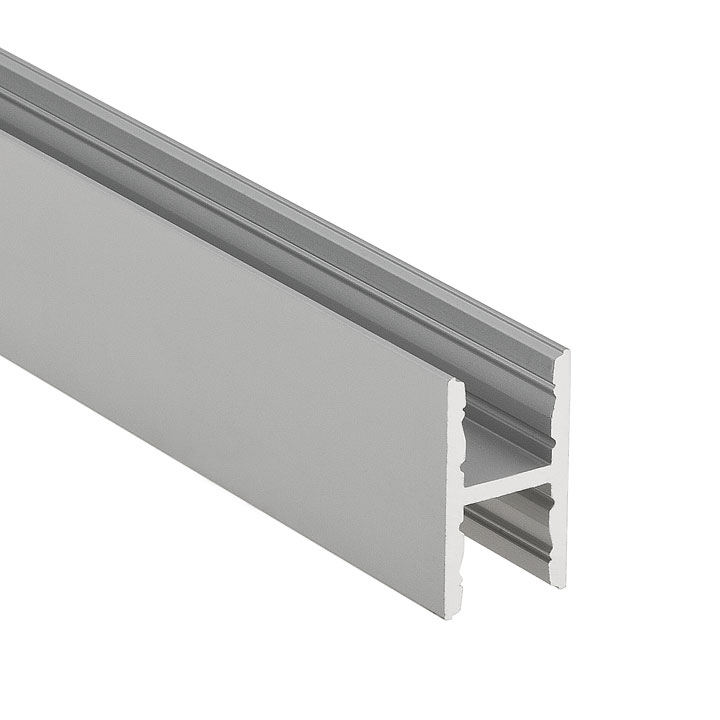

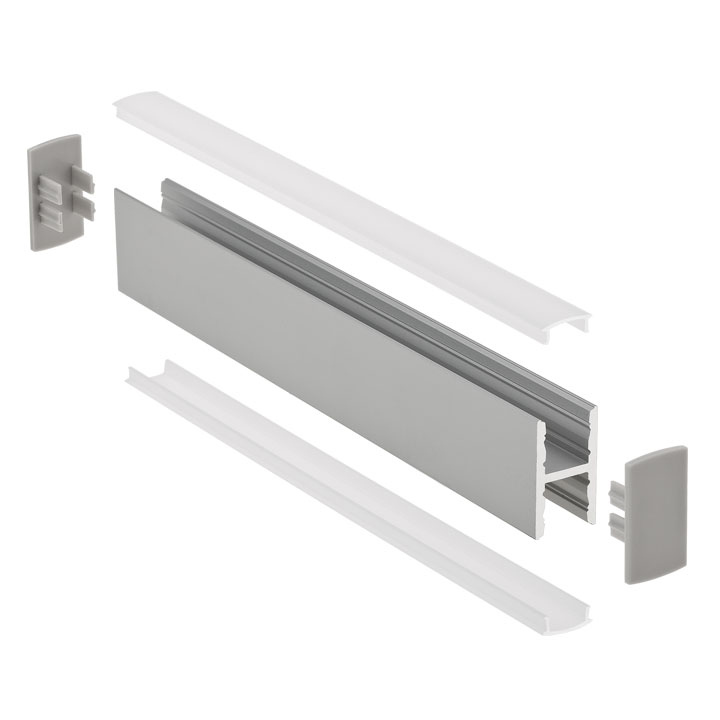

31.4x17.4mm double emission suspension profile
Anodized extruded aluminum profile.
The two light emissions (upper and lower) also allow you to differentiate the color of the same.
The product can be customized from the color of the profile to the length, being able to choose the type of lig??????????????
| IP grade | IP20 |
| Installation | Sospensione |
| Body material | Metallo |
| Cover material | Metallo |
| Watt | 100,0W |
| Ref. | 30° |
| Packaging | Box , Bag |
| Warranty | 2 years |
| Finishes | Opale , Lente 30° , ZA , Nero opaco (RAL9005) , Bianco RAL9010 , Grigio chiaro opaco (RAL9006) |
| Special finishes | Oro , Argento , Bronzo , Grigio Antracite Testurizzato , Oro spazzolato , Nichel spazzolato , Rame antico , Nichel nero lucido , Titanio , 10 , 11 , 12 , 13 , 14 , 15 , ZA |
Downloads:
| Code | Description |
|---|---|
| PRF003PX01 | Opal polycarbonate diffuser (2m bar) |
| PRF003PX11 | Opal polycarbonate diffuser (1m bar) |
| PRF003PX29 | PMMA diffuser 29° lens (2m bar) |
| PRF003PX31 | Opal polycarbonate diffuser (3m bar) |
| PRF003PX41 | Opal polycarbonate diffuser (4m bar) |
| PRF042/100 | Double beam suspension profile (1m bar) |
| PRF042/100B | White profile with double light beam suspension (1m bar) |
| PRF042/100W | Black profile with double light beam suspension (1m bar) |
| PRF042/200 | Double beam suspension profile (2m bar) |
| PRF042/200B | Black profile with double light beam suspension (2m bar) |
| PRF042/200W | White profile with double light beam suspension (2m bar) |
| PRF042/300 | Double beam suspension profile (3m bar) |
| PRF042/300B | Black profile with double light beam suspension (3m bar) |
| PRF042/300W | White profile with double light beam suspension (3m bar) |

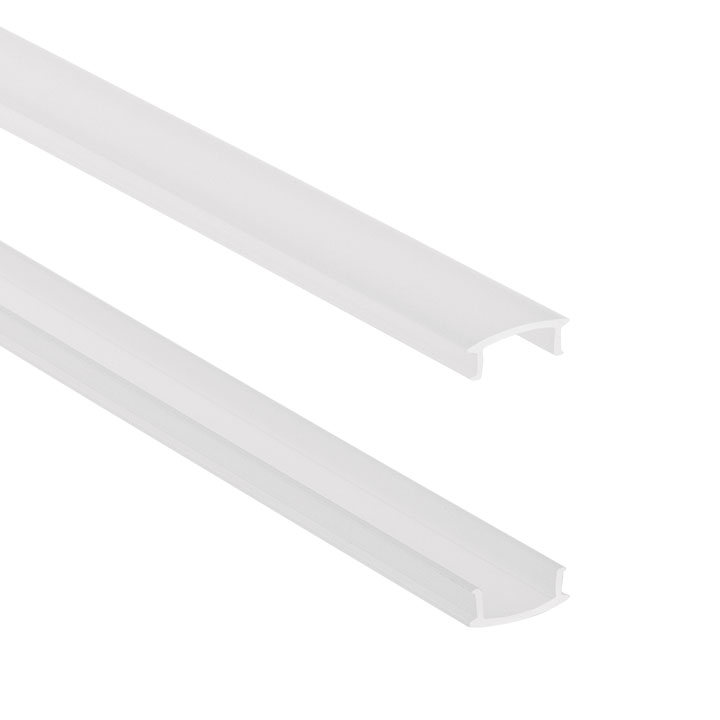

| PRF042PX01 | Opal polycarbonate diffuser (2m bar) |
| PRF042PX11 | Opal polycarbonate diffuser (1m bar) |
| PRF042PX31 | Opal polycarbonate diffuser (3m bar) |

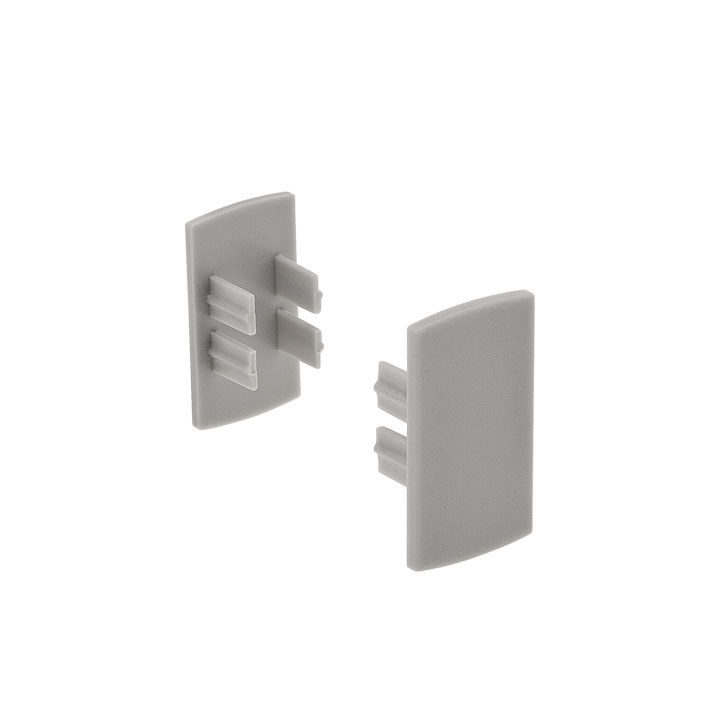

| PRF042TP01 | Grey plastic cap for PRF042 profile |
| PRF042TP02 | White plastic cap for PRF042 profile |
| PRF042TP04 | Black plastic cap for PRF042 profile |
| SRR001N | Black rectangular rosette with holes, 300mmx80x30 |
| SRR001W | White rectangular rosette with holes, 300mmx80mmx30mm |
| SRR003N | Rectangular Black Rosette with Holes, 320mmx45mmx30mm |
| SRR003W | White rectangular rosette with holes, 320mmx45mmx30mm |
| SRR004N | Black rectangular rosette with holes, 300mmx80mmx40mm |
| SRR004W | White rectangular rosette with holes, 300mmx80mmx40mm |
| SRR005N | Rectangular black metal rosette 148x93x25mm Hole diameter 10mm |
| SRR005W | Rectangular white metal rosette 148x93x25mm Hole diameter 10mm |
| SSP006 | Suspension kit with bracket and screw, 1.5m cable (2 pieces) |
| SSP011 | Metal tilting bracket for sloping ceilings |
| Finishing | Ref. | Watt | IP grade | |
|---|---|---|---|---|
| PRF003PX01 | Opale | |||
| PRF003PX11 | Opale | |||
| PRF003PX29 | Lente 30° | 30° | ||
| PRF003PX31 | Opale | |||
| PRF003PX41 | Opale | |||
| PRF042/100 | ZA | |||
| PRF042/100B | Nero opaco (RAL9005) | |||
| PRF042/100W | Bianco RAL9010 | |||
| PRF042/200 | ZA | |||
| PRF042/200B | Nero opaco (RAL9005) | |||
| PRF042/200W | Bianco RAL9010 | |||
| PRF042/300 | ZA | |||
| PRF042/300B | Nero opaco (RAL9005) | |||
| PRF042/300W | Bianco RAL9010 | |||
| PRF042PX01 | ||||
| PRF042PX11 | ||||
| PRF042PX31 | Opale | |||
| PRF042TP01 | Grigio chiaro opaco (RAL9006) | |||
| PRF042TP02 | Grigio chiaro opaco (RAL9006) | |||
| PRF042TP04 | Grigio chiaro opaco (RAL9006) | |||
| SRR001N | Nero opaco (RAL9005) | 100,0W | IP20 | |
| SRR001W | Bianco RAL9010 | 100,0W | IP20 | |
| SRR003N | Bianco RAL9010 | 100,0W | IP20 | |
| SRR003W | Bianco RAL9010 | 100,0W | IP20 | |
| SRR004N | Bianco RAL9010 | 100,0W | IP20 | |
| SRR004W | Bianco RAL9010 | 100,0W | IP20 | |
| SRR005N | Bianco RAL9010 | 100,0W | IP20 | |
| SRR005W | Bianco RAL9010 | 100,0W | IP20 | |
| SSP006 | ||||
| SSP011 |
