Classe III
Acciaio 24,0Vdc 120° IP67

CD92

CANDIANO 92: FLOOR AND WALL RECESSED

Protection class Classe III
IP grade IP67
Cover material Acciaio AISI316
CRI Ra>80
Watt 0006
Ref. 120°
Power supply 24,0Vdc
Packaging Box
Warranty 2 years
Finishes Acciaio
Downloads:

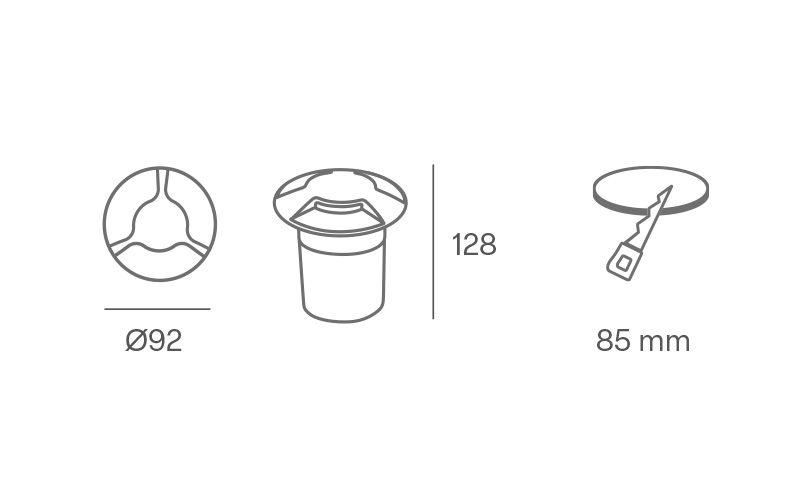

  • Technical drawing
  • Data sheet

Code Description
CD92246C00 CANDIANO 92 RECESSED 2W 120° 24Vdc 3000K STAINLESS STEEL RING 316
CD92246N00 CANDIANO 92 RECESSED 2W 120° 24Vdc 4000K 316 STAINLESS STEEL RING
CD92I1F246C CANDIANO 92 RECESSED 1 WINDOW D.92 6W 24Vdc 3000K STAINLESS STEEL 316
CD92I1F246N CANDIANO 92 RECESSED 1 WINDOW D.92 6W 24Vdc 4000K STAINLESS STEEL 316
CD92I2F246C CANDIANO 92 RECESSED 2 WINDOWS D.92 6W 24Vdc 3000K STAINLESS STEEL 316
CD92I2F246N CANDIANO 92 RECESSED 2 WINDOWS D.92 6W 24Vdc 4000K STAINLESS STEEL 316
CD92I3F246C CANDIANO 92 RECESSED 3 WINDOWS D.92 6W 24Vdc 3000K STAINLESS STEEL 316
CD92I3F246N CANDIANO 92 RECESSED 3 WINDOWS D.92 6W 24Vdc 4000K STAINLESS STEEL 316
Finishing Input power supply Color light Ref. Watt IP grade
CD92246C00 Acciaio C 120° 0006 IP67
CD92246N00 Acciaio N 120° 0006 IP67
CD92I1F246C Acciaio 24,0Vdc C 0006 IP67
CD92I1F246N Acciaio 24,0Vdc N 0006 IP67
CD92I2F246C Acciaio 24,0Vdc C 0006 IP67
CD92I2F246N Acciaio 24,0Vdc N 0006 IP67
CD92I3F246C Acciaio 24,0Vdc C 0006 IP67
CD92I3F246N Acciaio 24,0Vdc N 0006 IP67
