24° 25° IP20

DW500

FARETTI PROFESSIONALI DA INCASSO DOWNLIGHT ORIENTABILI

FARETTI PROFESSIONALI DA INCASSO DOWNLIGHT ORIENTABILI

IP grade IP20
Adjustable 001
Body material ALL
CRI Ra>90 , Ra 80
Lumen 1130 , 3140 , 4940
Watt 0015 , 0030 , 0040 , 0010
Led Type CXA
Brand Led CREE
Ref. 25° , 50° , 24°
Power supply 220,0-240,0Vac , 230,0Vac

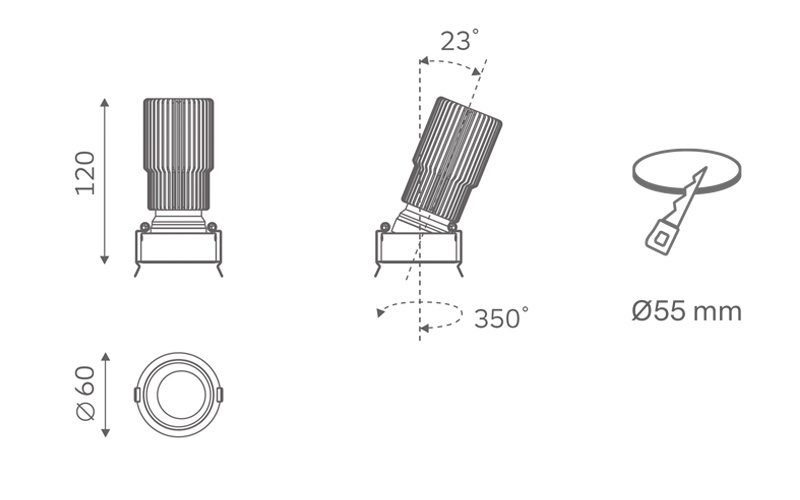

Hole 55mm , 75mm , 95mm
Packaging Box
Warranty 2 years
Finishes Bianco RAL9010
Downloads:
  • Data sheet

Code Description
DW500-15C25 ZENO DOWNLIGHT ORIENTABILI 15W 60X120MM 3000K 25°
DW500-15C50 ZENO DOWNLIGHT ORIENTABILI 15W 60X120MM 3000K 50°
DW500-15N25 ZENO DOWNLIGHT ORIENTABILI 15W 60X120MM 4000K 25°
DW500-15N50 ZENO DOWNLIGHT ORIENTABILI 15W 60X120MM 4000K 50°
DW500-30C25 ZENO DOWNLIGHT ORIENTABILI 30W 80X140MM 3000K 25°
DW500-30C50 ZENO DOWNLIGHT ORIENTABILI 30W 80X140MM 3000K 50°
DW500-30N25 ZENO DOWNLIGHT ORIENTABILI 30W 80X140MM 4000K 25°
DW500-30N50 ZENO DOWNLIGHT ORIENTABILI 30W 80X140MM 4000K 50°
DW500-40C25 ZENO DOWNLIGHT ORIENTABILI 40W 110X145MM 3000K 25°
DW500-40C50 ZENO DOWNLIGHT ORIENTABILI 40W 110X145MM 3000K 50°
DW500-40N25 ZENO DOWNLIGHT ORIENTABILI 40W 110X145MM 4000K 25°
DW500-40N50 ZENO DOWNLIGHT ORIENTABILI 40W 110X145MM 4000K 50°
DW500WEO-10CCT ZENO DOWNLIGHT ESTR ORIENT 10W CCT
Finishing Input power supply Number of LEDs Color light Ref. Lumen Watt IP grade
DW500-15C25 220,0-240,0Vac 1 C 25° 1130 0015 IP20
DW500-15C50 220,0-240,0Vac 1 C 50° 1130 0015 IP20
DW500-15N25 220,0-240,0Vac 1 N 25° 1130 0015 IP20
DW500-15N50 220,0-240,0Vac 1 N 50° 1130 0015 IP20
DW500-30C25 220,0-240,0Vac 1 C 25° 3140 0030 IP20
DW500-30C50 220,0-240,0Vac 1 C 50° 3140 0030 IP20
DW500-30N25 220,0-240,0Vac 1 N 25° 3140 0030 IP20
DW500-30N50 220,0-240,0Vac 1 N 50° 3140 0030 IP20
DW500-40C25 220,0-240,0Vac 1 C 25° 4940 0040 IP20
DW500-40C50 220,0-240,0Vac 1 C 50° 4940 0040 IP20
DW500-40N25 220,0-240,0Vac 1 N 25° 4940 0040 IP20
DW500-40N50 220,0-240,0Vac 1 N 50° 4940 0040 IP20
DW500WEO-10CCT Bianco RAL9010 230,0Vac 1 K1 24° 0010
